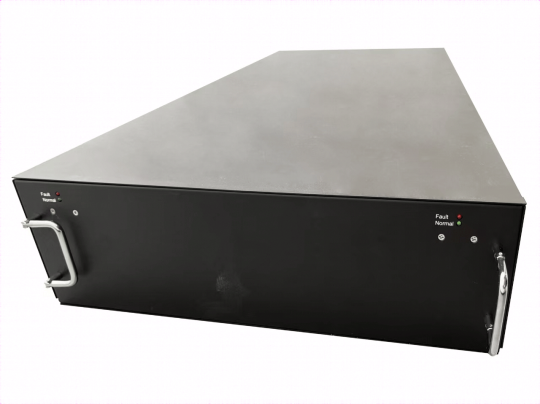

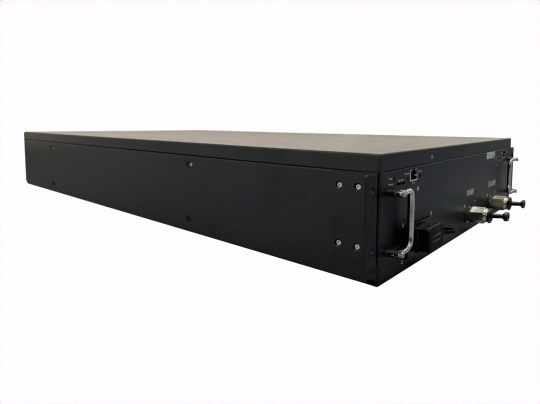

Bitcoin Miner U3S23H
| Function | BTC/BCH/BSV SHA256 Hydro-cooling Miner |
| Specifications | 1160T 11020W 9.5J/T |
| Price |
30 $/T
34,800 $/Unit
|
|
After Coupon |
25.5 $/T
29,580 $/Unit
|
- Categories: Bitcoin Miner, BTC/BCH/BSV
- Availability: In Stock
- Product Type: Simple
Performance Curves
1. Hashrate vs. Inlet Coolant Temperature
2. Power Efficiency vs. Inlet Coolant Temperature
(3-1) The hashrate value, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power efficiency on wall fluctuate by ±5%.
| Specifications
| Product Glance | Value |
| Model | U3S23H |
| Version | 1160T-10 |
| Crypto algorithm/coins | SHA256|BTC/BCH/BSV |
| Typical hashrate, TH/s(1-1) | 1,160 |
| Power on wall @35℃(1-2), Watt(1-1) | 11,020 |
| Power efficiency on wall@35℃(1-2), J/T(1-1) | 9.5 |
| Detailed Characteristics | Value |
| Power Supply | |
| Phase | 3 |
| Input voltage, Volt(2-1) | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 24 |
| Power port | LP34 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm | 900*482.6*130 |
| Server size (length*width*height, with package), mm | 1,150*640*260 |
| Net weight, kg | 42.0 |
| Gross weight, kg | 48.0 |
| Environment Requirements | |
| Inlet coolant temperature, °C | 20~50 |
| Coolant flow, L/min | 16.0~20.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant(3-2) | Antifreeze/Pure water/Deionized water |
| Coolant pH value | Antifreeze: 7.0~9.0 Pure water: 6.5~7.5 Deionized water：8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD14 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
Notes:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet coolant temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to”ANTSPACE HW7 Liquid cooling container & Dry-cooling Tower product manual“, Chapter 9, Article 3, Point 6,” Coolant Maintenance” and” Appendix B”!
1. Hashrate vs. Inlet Coolant Temperature
2. Power Efficiency vs. Inlet Coolant Temperature
(3-1) The hashrate value, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power efficiency on wall fluctuate by ±5%.
| Product Glance | Value |
| Model | U3S23H |
| Version | 1160T-10 |
| Crypto algorithm/coins | SHA256|BTC/BCH/BSV |
| Typical hashrate, TH/s(1-1) | 1,160 |
| Power on wall @35℃(1-2), Watt(1-1) | 11,020 |
| Power efficiency on wall@35℃(1-2), J/T(1-1) | 9.5 |
| Detailed Characteristics | Value |
| Power Supply | |
| Phase | 3 |
| Input voltage, Volt(2-1) | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 24 |
| Power port | LP34 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm | 900*482.6*130 |
| Server size (length*width*height, with package), mm | 1,150*640*260 |
| Net weight, kg | 42.0 |
| Gross weight, kg | 48.0 |
| Environment Requirements | |
| Inlet coolant temperature, °C | 20~50 |
| Coolant flow, L/min | 16.0~20.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant(3-2) | Antifreeze/Pure water/Deionized water |
| Coolant pH value | Antifreeze: 7.0~9.0 Pure water: 6.5~7.5 Deionized water：8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD14 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet coolant temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to"ANTSPACE HW7 Liquid cooling container & Dry-cooling Tower product manual", Chapter 9, Article 3, Point 6," Coolant Maintenance" and" Appendix B"!
