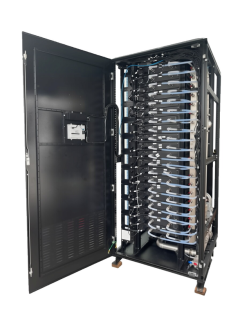

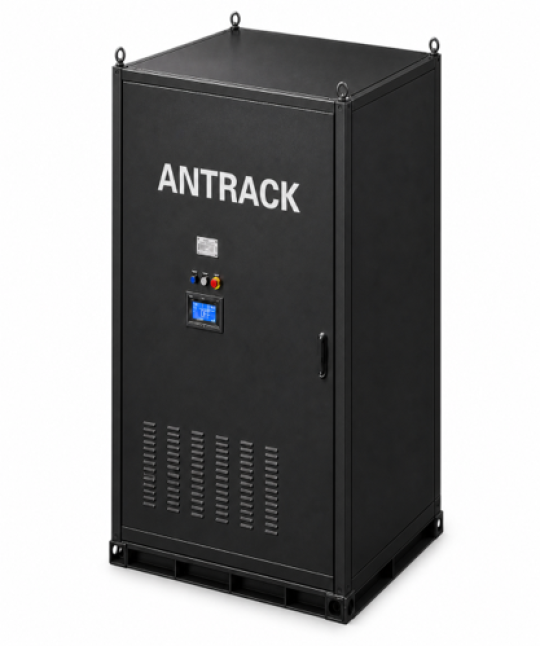

ANTRACK AR30
| Specifications | 1Set 200kW 20 units ANTMINER (U2 Hydro) |
| Price |
16,000 $/Unit
|
Shipping Date
SPOT Shipping from November 2026
Payment Method
USDBTCETCUSDC(ERC20)USDT(ERC20/TRC20)
$16000.00
- Categories: Bitcoin Miner, BTC/BCH/BSV
- Availability: In Stock
- Product Type: Simple
Specifications
| Product Glance | Value |
| Model | ANTRACK |
| Version | AR30 |
| Capacity | 20 units ANTMINER (U2 Hydro) or 14 units ANTMINER (T-type Hydro) |
| Miner maximum load,kW | 200 |
| Total load, kW | 207 |
| Detailed Characteristics | Value |
| Part 1: Mining Cabinet | |
| Hardware Configuration | |
| Size (Length*Width*Height), mm (without package) | 1,000*1,200*2,300 |
| Size (Length*Width*Height), mm (with package) | 1,070*1,380*2,400 |
| Net weight, kg (without package) | 670 |
| Gross weight, kg (with package) | 780 |
| Network connection mode | RJ45 Ethernet 10/100M |
| Power Supply | |
| Power supply AC Input voltage, Volt(1-1) | 380~480V AC |
| Power supply AC Input Frequency Range, Hz | 50~60 |
| Power supply AC Input current, Amp(1-2) | 315 @ 380V 249 @ 480V |
| Water pump | |
| Rated power, kW | 7.5 |
| Noise, dBA@1m | 79 |
| Lift, m | 73 |
| Size (Length*Width* Height), mm | 618*248*300 |
| Plate heat exchanger | |
| Maximum heat exchange power, kW | 200 |
| Size (Length*Width* Height), mm | 490*235*250 |
| Diameter of water pipe connector, mm | DN50 |
| Environment Requirements | |
| Coolant inlet temperature, °C | -20~45 |
| Water flow, L/min | 320~350 |
| Water pressure, bar | ≤3.5 |
| Working fluid(1-3) | Organic Antifreeze (10%) |
| Installation distance, m(1-4) | ≤5 |
| Liquid PH | 7.8~8.5 |
| Storage temperature, °C | -40~70 |
| Operation humidity(non-condensing), RH | 10~90% |
Notes:
(1-1) Caution: Wrong input voltage may probably cause miner damaged.
(1-2) Three-phase AC input.
(1-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
(1-4) The maximum distance between mining cabinet and external cooler.
Specifications
Notes:
(1-1) Caution: Wrong input voltage may probably cause miner damaged.
(1-2) Three-phase AC input.
(1-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
(1-4) The maximum distance between mining cabinet and external cooler.
