Specifications

---



Product Glance	Value

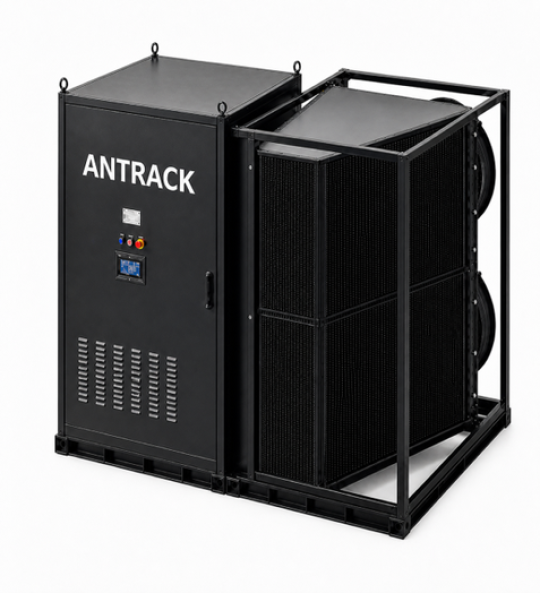

Model	ANTRACK
Version	AR31
Capacity	20 units ANTMINER (U2 Hydro) or 14 units ANTMINER (T-type Hydro)
Miner maximum load,kW	200
Total load, kW	215



Detailed Characteristics	Value
Part 1: Mining Cabinet
Hardware Configuration
Size (Length*Width*Height), mm (without package)	1,000*1,200*2,300
Size (Length*Width*Height), mm (with package)	1,070*1,380*2,400
Net weight, kg (without package)	640
Gross weight, kg (with package)	750
Network connection mode	RJ45 Ethernet 10/100M
Power Supply
Power supply AC Input voltage, Volt(1-1)	380~480V AC
Power supply AC Input Frequency Range, Hz	50~60
Power supply AC Input current, Amp(1-2)	326 @ 380V 270 @ 480V
Water pump
Rated power, kW	7.5
Noise, dBA@1m	79
Lift, m	73
Size (Length*Width* Height), mm	618*248*300

Part 2: External Cooler(1-3)
Hardware Configuration
Size (Length*Width*Height), mm (without package)	1,200*2,250*2,300
Size (Length*Width*Height), mm (with package)	1,250*2,320*2,400
Net weight, kg (without package)	550
Gross weight, kg (with package)	700
Power supply
Power supply AC input voltage, Volt(1-1)	380~480V AC
Power supply AC input frequency range, Hz	50~60
Maximum power supply AC input current, Amp(1-2)	15.8 @ 380V 14.8 @ 480V
Fan
Rated power, kW	4.1 * 2 @ 380V 4.7 * 2 @ 480V
Noise, dBA@1m	78
Size (Length*Height*Thickness), mm	1,070*1,070*330
Plate heat exchanger (optional)
Maximum heat exchange power, kW	200
Size (Length*Width* Height), mm	490*235*250
Diameter of water pipe connector, mm	DN50
Environment Requirements
Ambient temperature, °C	-20~44
Water flow, L/min	320~350
Water pressure, bar	≤3.5
Working fluid(1-4)	Organic Antifreeze (10%)
Installation distance, m(1-5)	5
Liquid PH	7.8~8.5
Storage temperature, °C	-40~70
Operation humidity(non-condensing), RH	10~90%

Notes: (1-1) Caution: Wrong input voltage may cause server damaged. (1-2) Three-phase AC input. (1-3) The External cooler should be placed outdoors in a well-ventilated environment. (1-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time. (1-5) The maximum distance between mining cabinet and external cooler.
