Specifications

---



Product Glance	Value

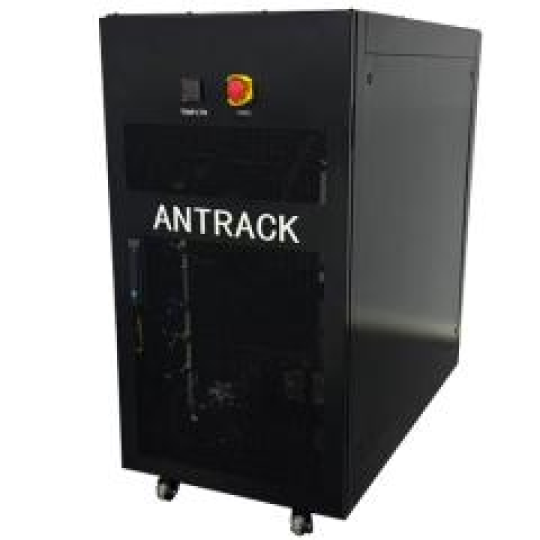

Model	ANTRACK
Version	AR21
Capacity	4 units ANTMINER (Hydro) or 2 units ANTMINER (U2 Hydro) or 2 units ANTMINER (U3 Hydro)
Maximum load,kW	24



Detailed Characteristics	Value

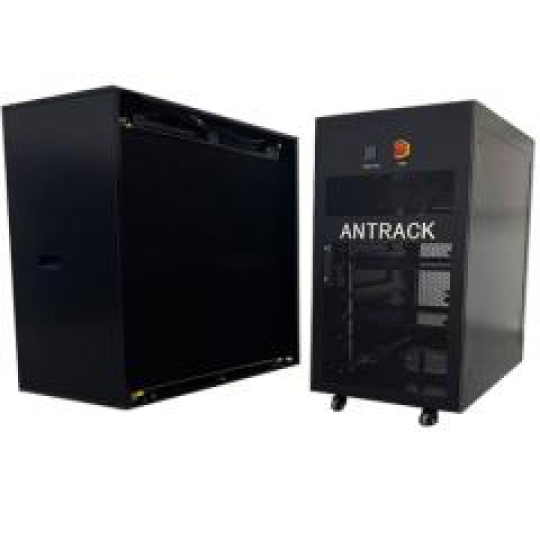

Part 1: Mining Cabinet
Hardware Configuration
Size (Length*Width*Height), mm (without package)	1260*600*1185
Size (Length*Width*Height), mm (with package)	1320*760*1320
Net weight, kg (without package)	138
Gross weight, kg (with package)	195
Network connection mode	RJ45 Ethernet 10/100M
Power Supply
Power supply AC Input voltage, Volt(1-1)	380~415V AC
Power supply AC Input Frequency Range, Hz	50~60
Power supply AC Input current, Amp(1-2)	63
Water pump
Rated power, W	450
Noise, dBA@1m	60
Lift, m	19
Size (Length*Width* Height), mm	360*210*268
Part 2: External Cooler(1-3)
Hardware Configuration
Size (Length*Width*Height), mm (without package)	1197*650*1177
Size (Length*Width*Height), mm (with package)	1320*760*1320
Net weight, kg (without package)	112
Gross weight, kg (with package)	165
Power supply
Power supply AC input voltage, Volt(1-1)	380~415V AC
Power supply AC input frequency range, Hz	50~60
Maximum power supply AC input current, Amp(1-2)	63
Fan
Rated power, W	750
Noise, dBA@1m	64
Size (Length*Height*Thickness), mm	850*850*305
Environment Requirements
Ambient temperature, °C	-20~40
Water flow, L/min	32.0~40.0
Water pressure, bar	≤3.5
Working fluid(1-4)	Organic Antifreeze (10%)
Installation distance, m(1-5)	5
Liquid PH	7.8~8.5
Storage temperature, °C	-20~70
Operation humidity(non-condensing), RH	10~90%

Notes: (1-1) Caution: Wrong input voltage may cause server damaged. (1-2) Three-phase AC input. (1-3) The External cooler should be placed outdoors in a well-ventilated environment. (1-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time. (1-5) The distance between mining cabinet and external cooler.
