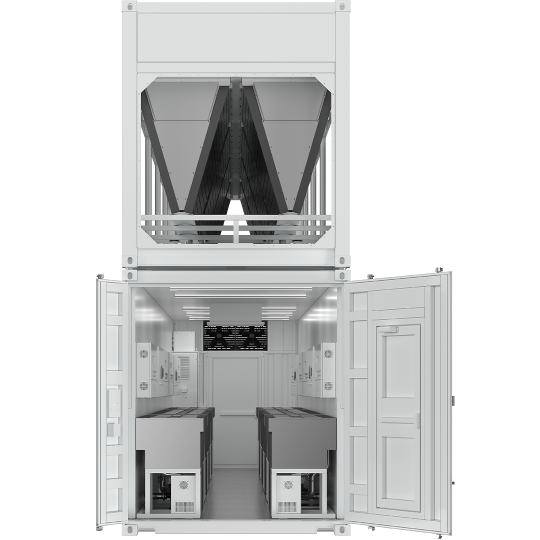

ANTSPACE MD5
| Specifications | 1Set 1000kW 160 Rack Space |
| Price |
180,000 $/Unit
|
Shipping Date
SPOT Shipping in 60 working days after fully paid
Payment Method
USDBTCETCUSDT(ERC20/TRC20)
$180000.00
- Categories: Bitcoin Miner, BTC/BCH/BSV
- Availability: In Stock
- Product Type: Simple
Specifications
Specifications For ANTSPACE MD5
| Product Overview | Value |
| Model | ANTSPACE MD5 |
| Dimensions (l*w*h), mm | 12192×2438×2896 |
| Miner capacity | 160 units -S21 Imm. & S21 XP Imm. |
| Container certification | China Classification Society Certification |
| Safety certification | NFPA 79: 2024 UL 508A: 2018 R7.22 CSA C22.2 No. 301:23 ANSI/ISO 12100: 2012 EN ISO 12100: 2010 EN 60204-1: 2018 |
| Operating power, kW | 1000 |
| PUE(Power usage effectiveness), @25℃ ambient temperature | 1.06 |
| Input voltage and frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 12 |
| Operating weight, T | 18.5 |
| Main switch of power distribution cabinets, A | 1200*2 |
| Rated current, A | A: 952; B: 866 |
| Rated Current per Miner, A | 20 |
| Inlet cable | The inlet cables can withstand high-voltage of above 600V, with the following requirements: L1 single core cable 600kcMil(300mm²)x4 L2 single core cable 600kcMil(300mm²)x4 L3 single core cable 600kcMil(300mm²)x4 N single-core cable 600kcMil(300mm²)x4 PE single-core cable 500kcMil(240mm²)x2 |
| Connection interface (Cooling Tower) | DN 65 (ISO2852 PN16） |
Specifications For Dry Tower
| Product Overview | Value |
| Dimensions(L*W*H), mm | 12192×2438×2896 |
| Outlet Temperature @30℃ ambient temperature | 35℃ (Outlet temp 5℃ above ambient temp) |
| Container Certification | China Classification Society Certification |
| Operating Power, kW | 100 |
| Motor Rated Voltage and Frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 11.8 |
| Operating weight, T | 12.8 |
| Connection interface | DN 65 (ISO2852 PN16） |
| Noise Level @25℃， 15m, dBA | 70 |
| Pipe materials | 304 stainless steel |
| Points For Attention
| 1 | The cooling tower is required to be placed on flat ground, with a horizontal alignment within ±1 degree. |
| 2 | The ground surface is required to be hardened and stable, able to withstand at least a 14-ton load. |
| 3 | A 15-ton crane is required for unloading an ANTSPACE unit and a cooling tower. |
| 4 | Add-on items such as stairs, transformers, cables, bridge racks and cable distribution boxes are not included in the delivery of ANTSPACE. The BITMAIN team can provide design suggestions if needed. |
| 5 | The client needs to confirm the opening direction of the container, which should face the air intake. The door on the left is designed by default. |
| 6 | Keep at least 4 meters of air intake space around the cooling tower. |
| 7 | Altitude: ≤3000m. If the altitude exceeds 1000 meters, the transformer and switch should be derated. Additionally, the total power of ANTSPACE must be decreased by 1% for every additional 100 meters of elevation. |
| 8 | The internal circulation system should be turned on to heat the coolant to above 20°C before starting the mining machine. |
| 9 | The suitable ambient temperature for ANTSPACE does not necessarily correspond to the suitable ambient temperature for the mining machine. |
