| Specifications

---



Product Glance	Value

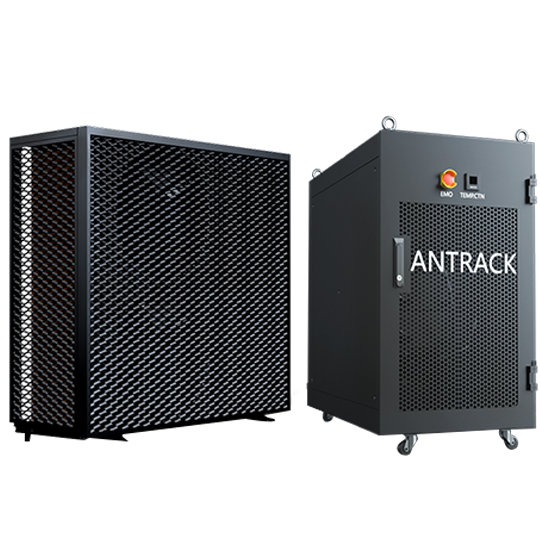

Model	ANTRACK
Version	AR22
Capacity	4 units ANTMINER (Hydro) or 2 units ANTMINER (U2 Hydro) or 2 units ANTMINER (U3 Hydro)
Maximum load,kW	24



Detailed Characteristics	Value
Part 1: Mining Cabinet
Hardware Configuration
Size (Length*Width*Height), mm (without package)	1200*600*1300
Size (Length*Width*Height), mm (with package)	1460*1330*780
Net weight, kg (without package)	132
Gross weight, kg (with package)	193
Network connection mode	RJ45 Ethernet 10/100M
Power Supply
Power supply AC Input voltage, Volt(1-1)	380~415V AC
Power supply AC Input Frequency Range, Hz	50~60
Power supply AC Input current, Amp(1-2)	63
Water pump
Rated power, W	450
Noise, dBA@1m	60
Lift, m	19
Size (Length*Width* Height), mm	360*210*268
Plate heat exchanger
Maximum heat exchange power, kW	30
Size (Length*Width* Height), mm	305*106*64
Diameter of water pipe connector, mm	DN20
Part 2: External Cooler(1-3)
Hardware Configuration
Size (Length*Width*Height), mm (without package)	1370*555*1333
Size (Length*Width*Height), mm (with package)	1500*610*1880
Net weight, kg (without package)	225
Gross weight, kg (with package)	263
Power supply
Power supply AC input voltage, Volt(1-1)	380~415V AC
Power supply AC input frequency range, Hz	50~60
Maximum power supply AC input current, Amp(1-2)	21
Heat pump
Heating Capacity (typical), kW	32
Compressor Input (typical), kW	8
EER (typical)	3.0
Sound Level, Db(A)	50
Refrigerant	R290
Heating water outlet temperature, °C	80
Fan
Rated power, W	500
Noise, dBA@1m	50
Size (Length*Height*Thickness), mm	551*551*160
Water pump
Rated power, W	180
Noise, dBA@1m	30
Size (Length*Width* Height), mm	130*551*129
Environment Requirements
Ambient temperature, °C	-20~40
Water flow, L/min	32.0~40.0 (Cabinet side)
Water flow, L/min	32.0~40.0 (Heating side)
Water pressure, bar	≤3.5
Working fluid(1-4)	Organic Antifreeze (10%)
Installation distance, m(1-5)	5
Liquid PH	7.8~8.5
Storage temperature, °C	-20~70
Operation humidity(non-condensing), RH	10~90%

Notes: (1-1) Caution: Wrong input voltage may probably cause miner damaged. (1-2) Three-phase AC input. (1-3) The External cooler (heat pump) should be placed outdoors in a well-ventilated environment. (1-4) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time. (1-5) The distance between mining cabinet and external cooler.
