| Specifications

---



Product Glance	Value

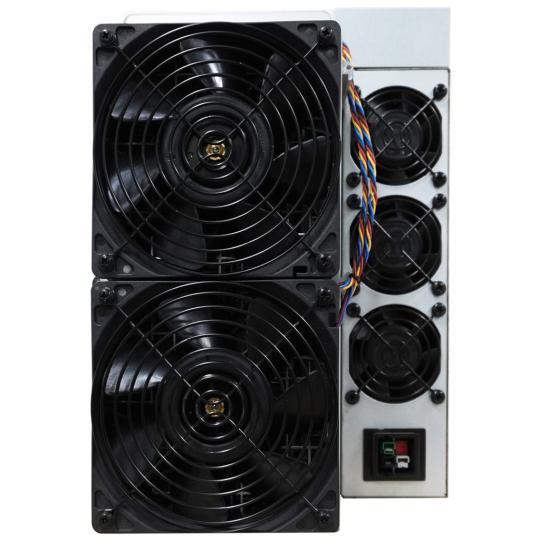

Model	KS5
Algorithm	kHeavyHash
Sub	Std     |   Pro
Hashrate, TH/s(1-1)	20      |   21
Power on wall @25°C, W(1-1)	3000  |   3150
Power efficiency on wall @25°C, J/T(1-1)	150

Detailed Characteristics	Value
Power supply
Power supply AC input voltage range V(2-1)	220~277V AC
Power supply AC input frequency range, Hz	50~60
Power supply AC input current, Amp(2-2)	20
Adapted AC output power requirment W(2-3)	4000
Hardware configuration
Networking connection mode	RJ45 Ethernet 10/100M
Miner size (length*width*height, w/o package),mm	430*195.5*290
Miner size (length*width*height, with package),mm	570*316*430
Net weight, kg	15.8
Gross weight, kg	17.7
Noise,dBA@25°C(2-4)	75
Environment requirements
Operation temperature,°C	-20~45
Storage temperature,°C	-40~70
Operation humidity(non-condensing) , RH	10~90%
Operation altitude, m(2-5)	≤2000

Notes: (1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values. The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%. (2-1) Caution: Wrong input voltage may cause server damaged. (2-2) ​​​​One 20A input wire. (2-3) Max condition: Fan is under max RPM(rotation per minute). (2-4) When the miner is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1°C for every increase of 300m.
